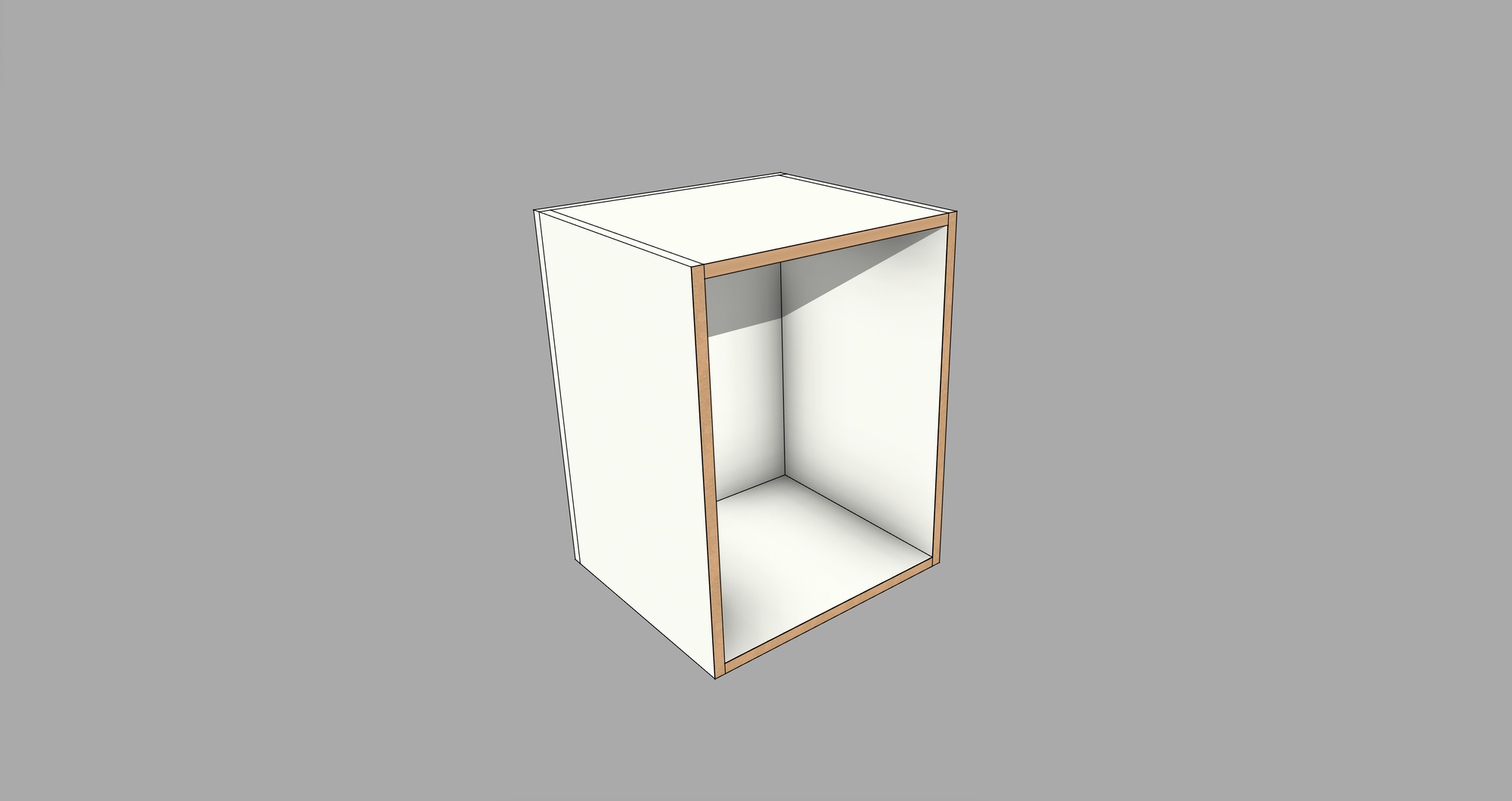

Build details for code FRM_EPTY Empty Base Cabinet

Tags : Tags built into the base cabinet in order to organise the components in larger models and manufacturing.

Components Options :

  • Material is derived from the ‘Colours in Model” these are uploaded from GDrive file. For alpha 3 material choices. Cabinet Depth O/A : Depth given from the front of the cabinet to the back of the back panel.
  • Cabinet Height : Cabinet Height
  • Cabinet Material Thickness - Pre-defined from 12mm to 23mm. Additional thickness can be added under Components Attributes Material
  • Cabinet Width - cabinet Width
  • Drawer Box thickness - inserted for future models. Removed before publishing.
  • Edging Material - Options found in ET_Material under attributes and referenced as materials.
  • Edgetape thickness pre-definied 0;0.6;1;2mm

Component Atributes

FRM_EPTY_BASE

Position X : =FRM_EPTY_CABINET!C_MAT_THICK

Position Y : 0cm

Position Z : =FRM_EPTY_CABINET!C_MAT_THICK

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY:=FRM_EPTY_CABINET!C_DEPTH-LenX-FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!C_MAT_THICK

Behaviours Material : =FRM_EPTY_CABINET!Material


FRM_EPTY_BACK

Position X : 0cm

Position Y : =FRM_EPTY_CABINET!C_DEPTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!ETAPE_THICK

Position Z : 0cm

SizeX: =FRM_EPTY_CABINET!C_WIDTH

SizeY:=FRM_EPTY_CABINET!C_MAT_THICK

SizeZ: =FRM_EPTY_CABINET!C_HEIGHT

Behaviours Material : =FRM_EPTY_CABINET!Material

FRM_EPTY_LHS

Position X : 0

Position Y : 0

Position Z : 0

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY:=FRM_EPTY_CABINET!C_DEPTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_HEIGHT

Behaviours Material : =FRM_EPTY_CABINET!Material

FRM_EPTY_RHS

Position X : =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK

Position Y : 0

Position Z : 0

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY: =FRM_EPTY_CABINET!C_DEPTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_HEIGHT

Behaviours Material : =FRM_EPTY_CABINET!Material

FRM_EPTY_TOP

Position X : =FRM_EPTY_CABINET!C_MAT_THICK

Position Y : 0

Position Z : =FRM_EPTY_CABINET!C_HEIGHT

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY: =FRM_EPTY_CABINET!C_DEPTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!C_MAT_THICK

Behaviours Material : =FRM_EPTY_CABINET!Material

FRM_EPTY_TOP

Position X : 0

Position Y : 0

Position Z : 0

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY:=FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_HEIGHT

Behaviours Material : =FRM_EPTY_CABINET!ET_Material

FRM_EPTY_ET_BASE

Position X : =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK

Position Y : 0

Position Z : =FRM_EPTY_CABINET!C_HEIGHT-FRM_EPTY_CABINET!C_MAT_THICK

SizeX: =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!C_MAT_THICK

SizeY: =FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_MAT_THICK

Behaviours Material : =FRM_EPTY_CABINET!ET_Material

FRM_EPTY_ET_TOP

Position X : =FRM_EPTY_CABINET!C_MAT_THICK

Position Y : 0

Position Z : 0

SizeX: =FRM_EPTY_CABINET!C_WIDTH-FRM_EPTY_CABINET!C_MAT_THICK-FRM_EPTY_CABINET!C_MAT_THICK

SizeY: =FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_MAT_THICK

Behaviours Material : =FRM_EPTY_CABINET!ET_Material

FROM_EPTY_ET_RHS

Position X : =FRM_EPTY_CABINET!C_WIDTH

Position Y : 0

Position Z : 0

SizeX: =FRM_EPTY_CABINET!C_MAT_THICK

SizeY: =FRM_EPTY_CABINET!ETAPE_THICK

SizeZ: =FRM_EPTY_CABINET!C_HEIGHT

Behaviours Material : =FRM_EPTY_CABINET!ET_Material
